Floor Spring

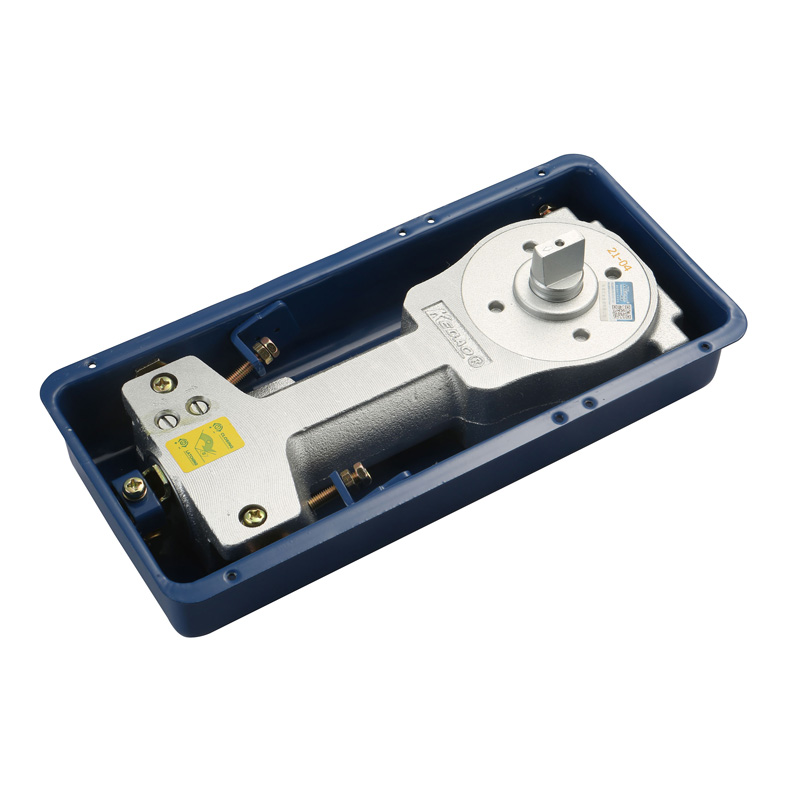

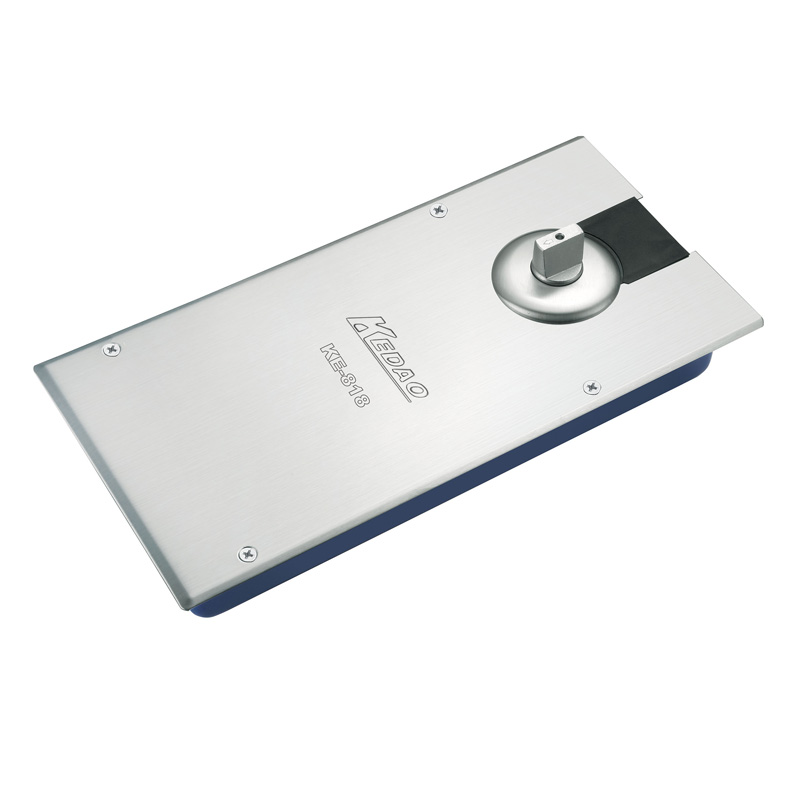

KE-818 FLOOR SPRING

KE-818
Contact Us

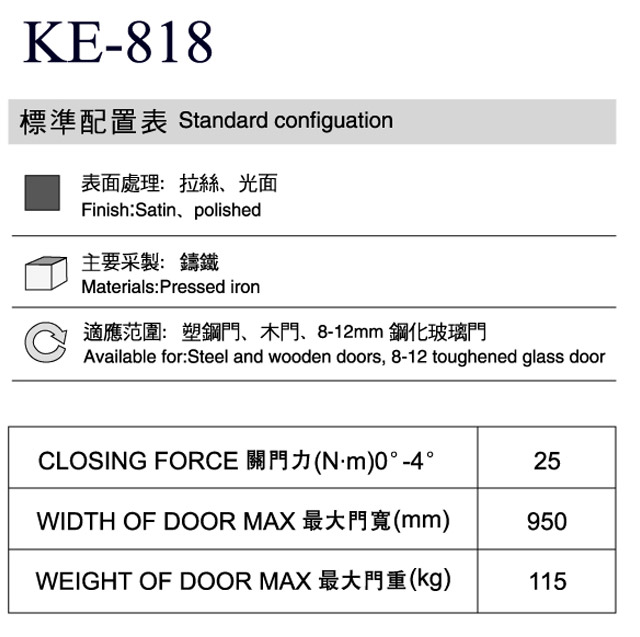

Name Model Number Brand Engine Cylinder Material Finish Color Closing Force
KE-818 FLOOR SPRING KE-818 Kedao Single Cylinder Iron and Stainless Steel Polish/Satin Sliver,black,gold and other colors EN2, EN3,EN4 for optional



Max Door Width Max Door Weight Max Open Degree Hold-Open Latching Speed Adjustment Closing Speed Adjustment Application Temperature
1100mm 115kg 120 degree 90 degree or 120 degree or no hold 0-20° 20°-90° -40°-60°



Dimension:Length*Width*Height Speed control Cycles Test Warranty Length(cm) Width(cm) Height(cm) Weight(Kg)

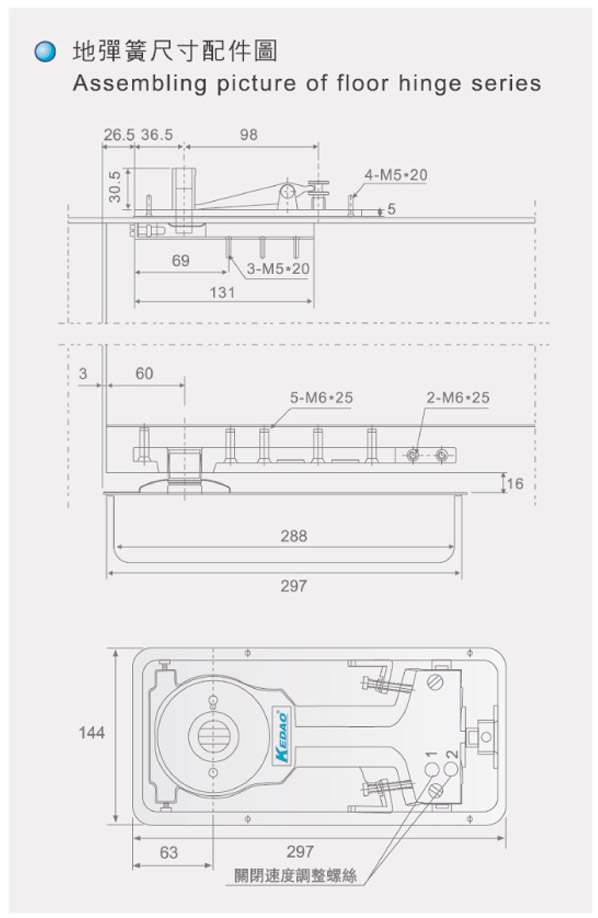

306mm*155mm*52mm Two Section Speed Control 500,000 cycles opening and closing 3 years 34 34 26 7.96
