Floor Spring

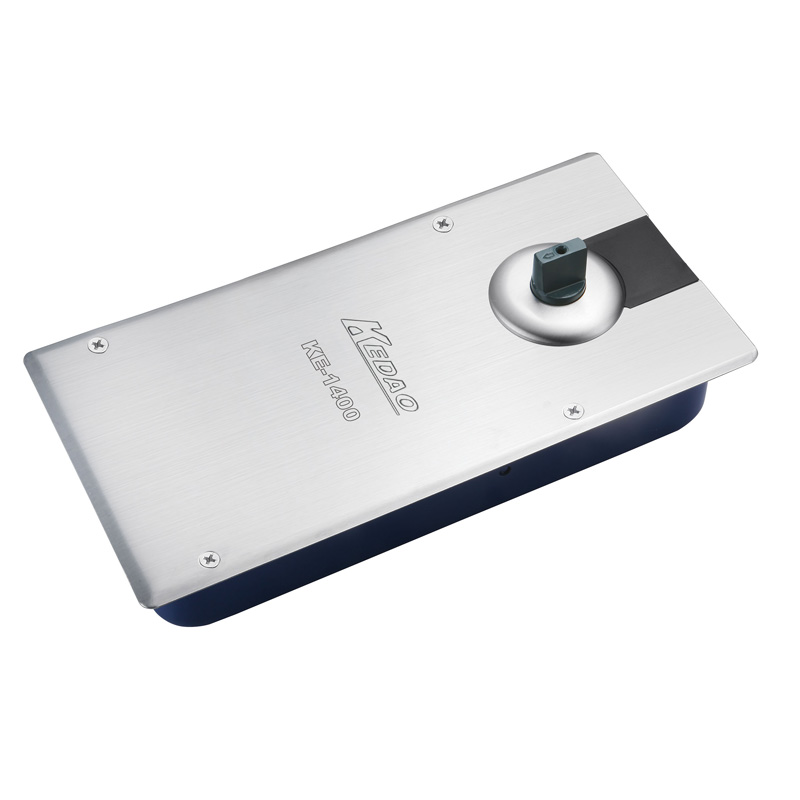

KE-1400 FLOOR SPRING

KE-1400
Contact Us

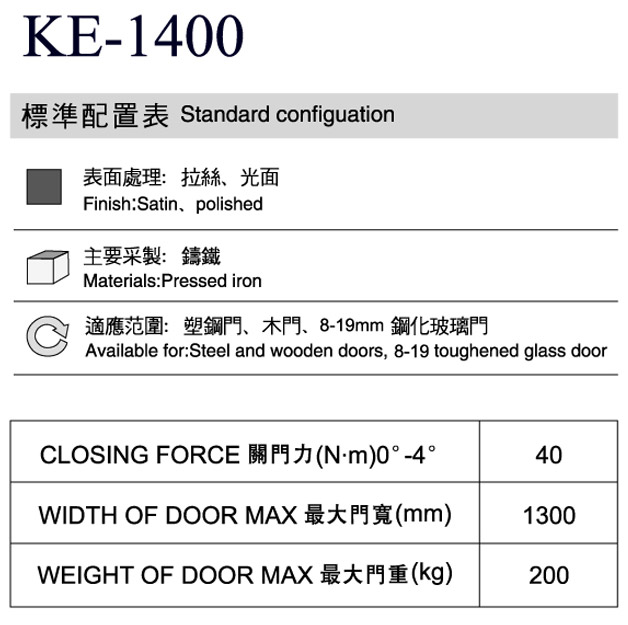

Name Model Number Brand Engine Cylinder Material Finish Color Closing Force
KE-1400 FLOOR SPRING KE-1400 Kedao Single Cylinder Iron and Stainless Steel Polish/Satin Sliver,black,gold and other colors EN2, EN3,EN4 for optional



Max Door Width Max Door Weight Max Open Degree Hold-Open Latching Speed Adjustment Closing Speed Adjustment Application Temperature
1300mm 200kg 120 degree 90 degree or 120 degree or no hold 0-20° 20°-90° -40°-60°

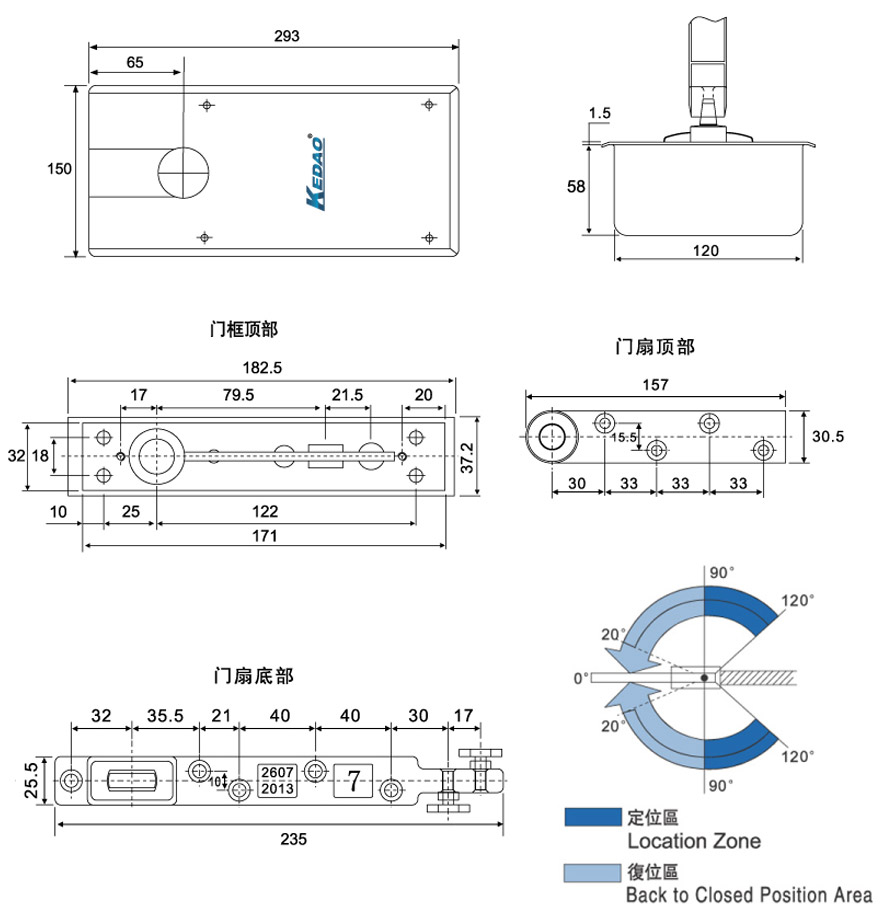

Dimension:Length*Width*Height Speed control Cycles Test Warranty Length(cm) Width(cm) Height(cm) Weight(Kg)
293mm*150mm*58mm Two Section Speed Control 500,000 cycles opening and closing 3 years 37.5 31 21.5 5.445
