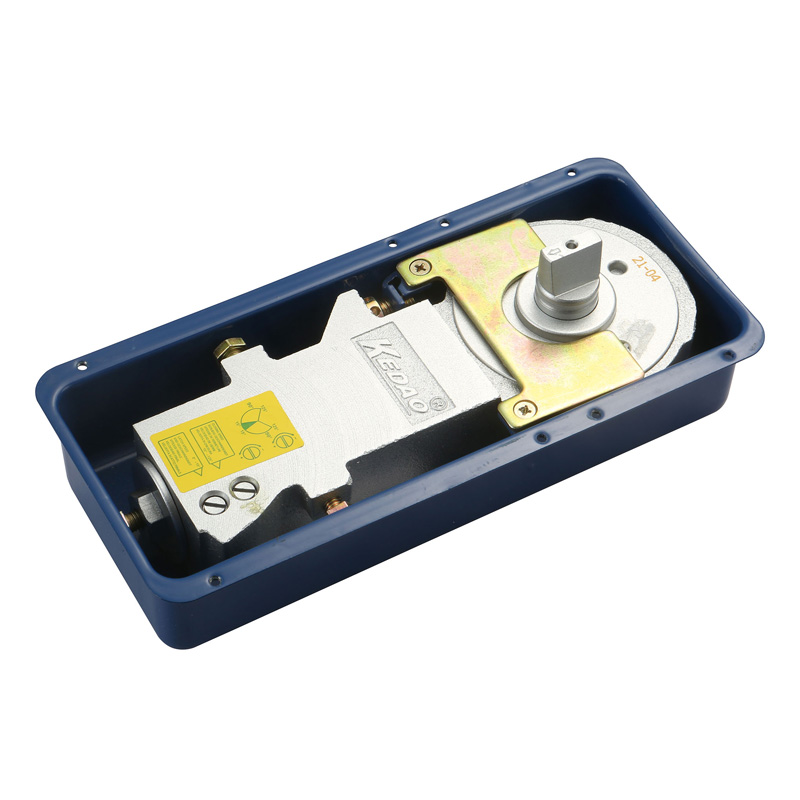

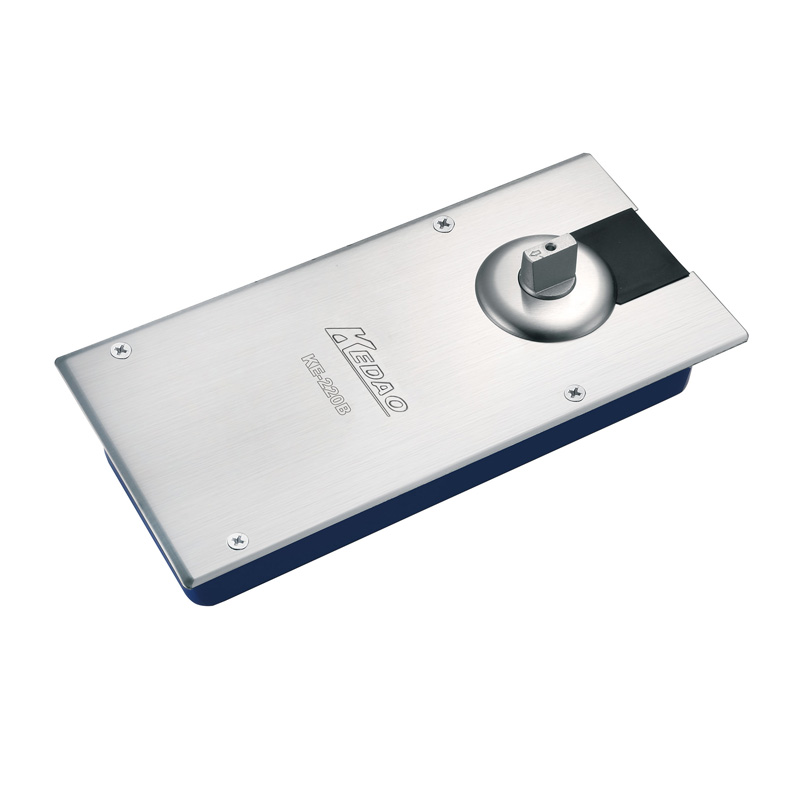

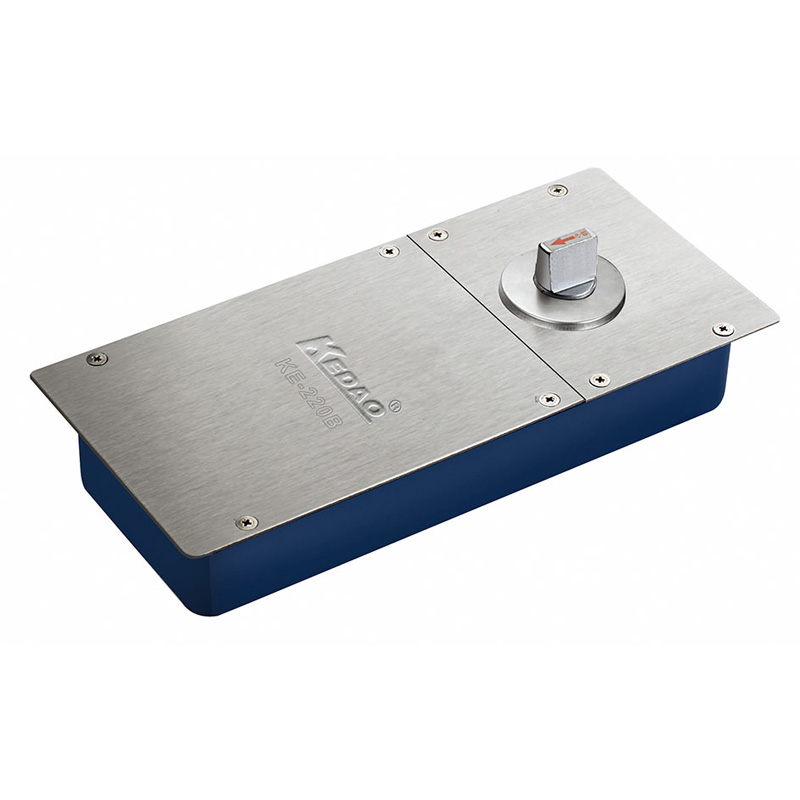

KE-220B Floor Spring

Name	Model Number	Brand	Engine Cylinder	Material	Finish	Color	Closing Force
KE-220B Floor Spring	KE-220B	KEDAO	Single Cylinder	Iron and Stainless Steel	Polish/Satin	Sliver,black,gold and other colors	EN2, EN3 for optional

Max Door Width	Max Door Weight	Max Open Degree	Hold-Open	Latching Speed Adjustment	Closing Speed Adjustment	Application Temperature
950mm	90kg	120 degree	90 degree or 120 degree or no hold	0-20°	20°-90°	-40°-60°

Dimension:LengthWidthHeight	Speed control	Cycles Test	Warranty	Length（cm)	Width（cm)	Height（cm)	Weight（Kg)
269mm132mm51mm	Two Section Speed Control	500,000 cycles opening and closing	3 years	29.5	28.5	21.5	4.3325
