Name | Model Number | Brand | Engine Cylinder | Material | Finish | Color | Closing Force |

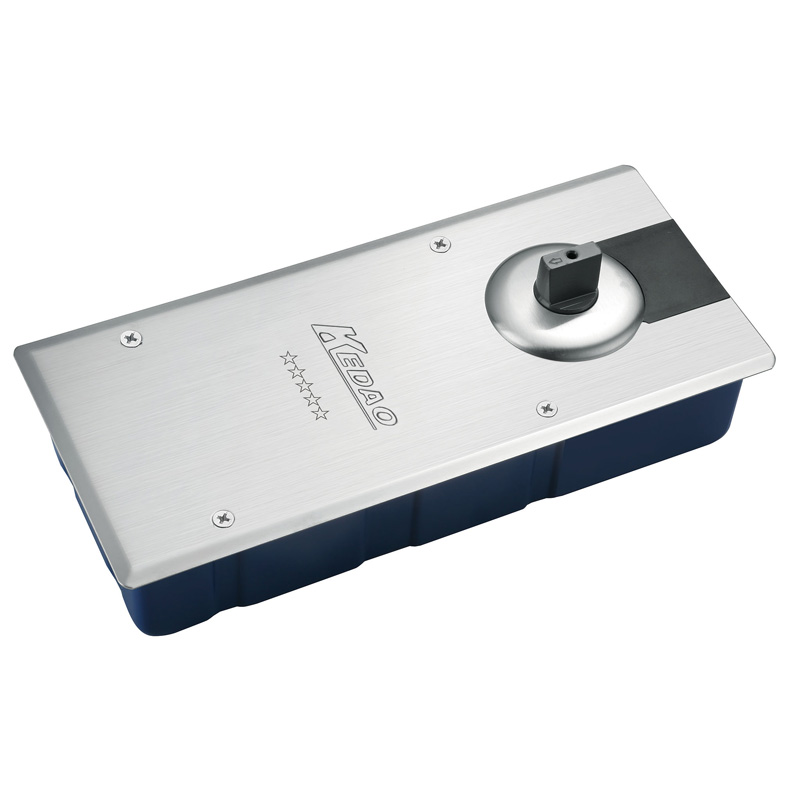

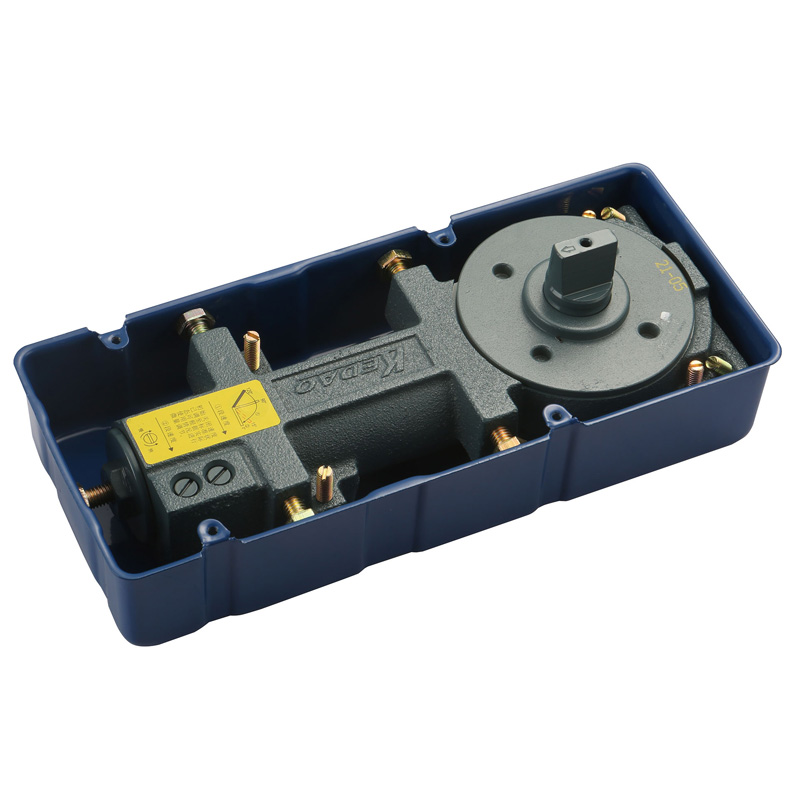

KE-5Stars Floor Spring | KE-5Stars | KEDAO | Single Cylinder | Iron and Stainless Steel | Polish/Satin | Sliver,black,gold and other colors | EN2, EN3 for optional |
Max Door Width | Max Door Weight | Max Open Degree | Hold-Open | Latching Speed Adjustment | Closing Speed Adjustment | Application Temperature |
800mm | 80KG | 120 degree | 90 degree or 120 degree or no hold | 0-20° | 20°-90° | -40°-60° |
Dimension:Length*Width*Height | Speed control | Cycles Test | Warranty | Length(cm) | Width(cm) | Height(cm) | Weight(Kg) |
268mm*122mm*51mm | Two Section Speed Control | 500,000 cycles opening and closing | 3 years | 35 | 30 | 21 | 4.765 |
