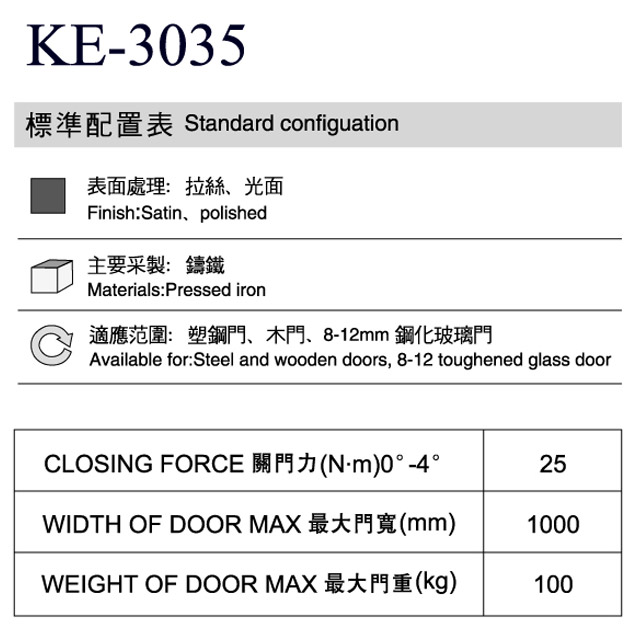

Name | Model Number | Brand | Engine Cylinder | Material | Finish | Color | Closing Force |
KE-3035 FLOOR SPRING | KE-3035 | Kedao | Single Cylinder Universal Type |
Iron and Stainless Steel | Polish/Satin | Sliver,black,gold and other colors | EN2, EN3,EN4 for optional |
Max Door Width | Max Door Weight | Max Open Degree | Hold-Open | Latching Speed Adjustment | Closing Speed Adjustment | Application Temperature |
1000mm | 100KG | 120 degree | 90 degree or 120 degree or no hold | 0-20° | 20°-90° | -40°-60° |

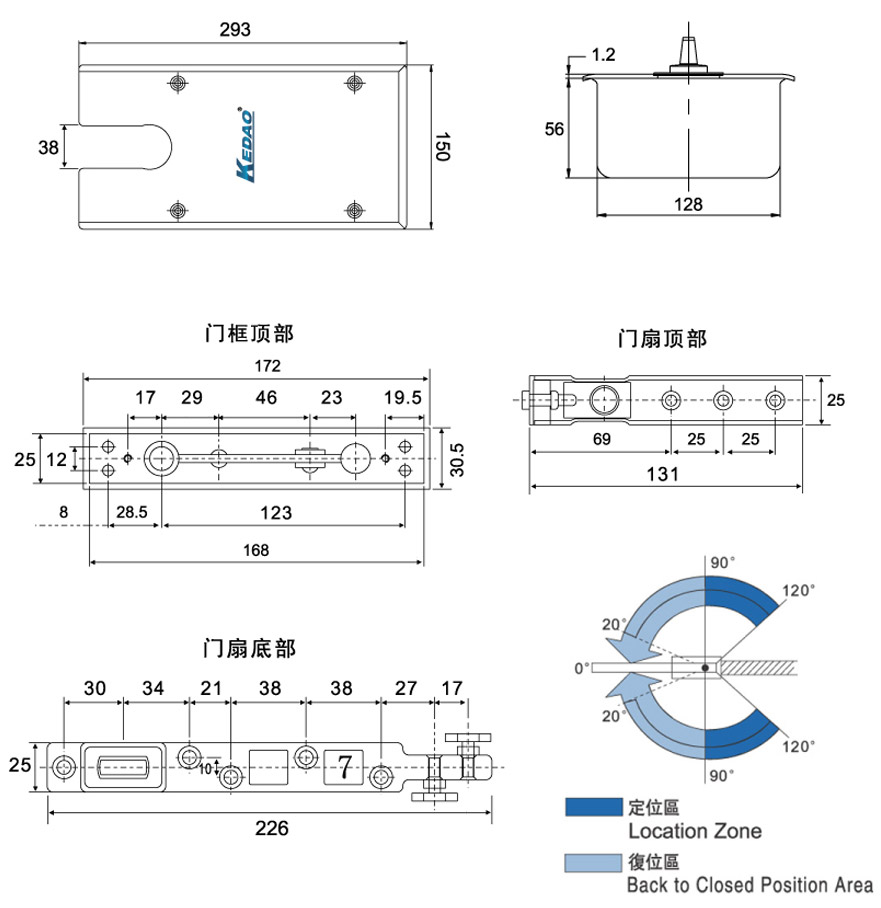

Dimension:Length*Width*Height | Speed control | Cycles Test | Warranty | Length(cm) | Width(cm) | Height(cm) | Weight(Kg) |
293mm*150mm*56mm | Two Section Speed Control | 500,000 cycles opening and closing | 3 years | 35 | 32.5 | 23 | 5.5 |
