Floor Spring

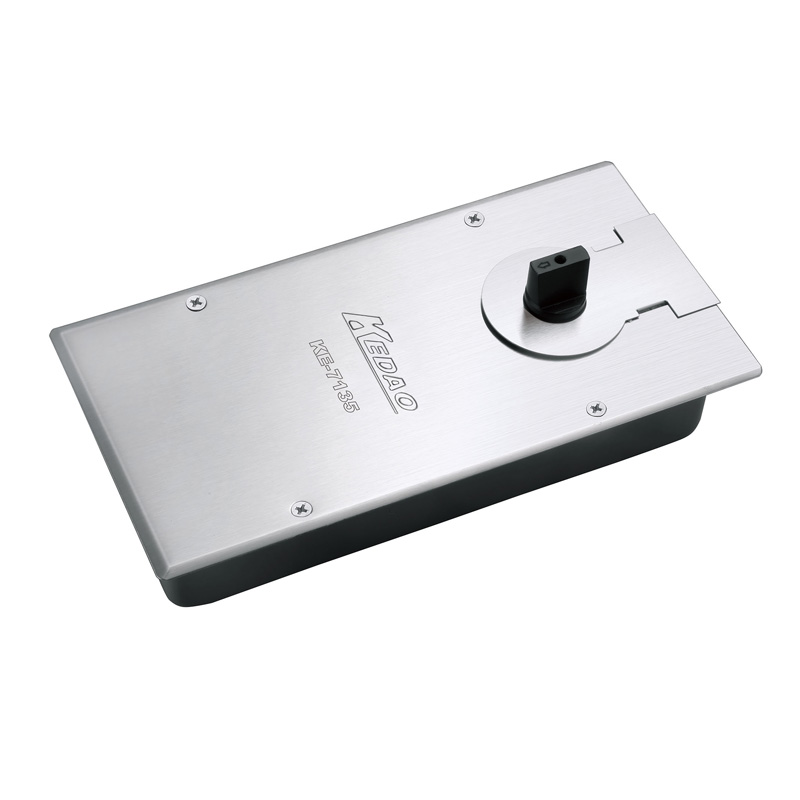

KE-7135 FLOOR SPRING

KE-7135
Contact Us
Name Model Number Brand Engine Cylinder Material Finish Color Closing Force
KE-7135 FLOOR SPRING KE-7135 Kedao Single Cylinder Iron and Stainless Steel Polish/Satin Sliver,black,gold and other colors EN2, EN3 for optional



Max Door Width Max Door Weight Max Open Degree Hold-Open Latching Speed Adjustment Closing Speed Adjustment Application Temperature
850MM 85KG 120 degree 90 degree or 120 degree or no hold 0-20° 20°-90° -40°-60°



Dimension:Length*Width*Height Speed control Cycles Test Warranty Length(cm) Width(cm) Height(cm) Weight(Kg)

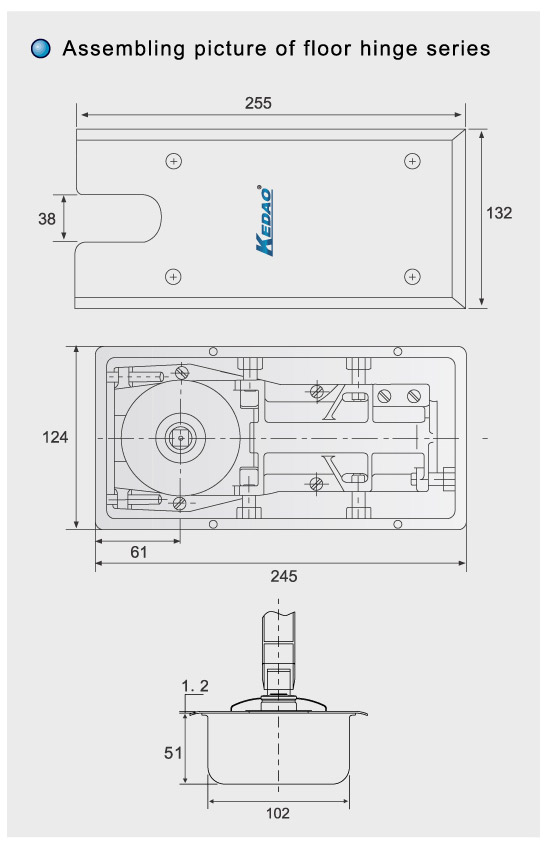

255mm*132mm*51mm Two Section Speed Control 500,000 cycles opening and closing 3 years 71 26 11 4
